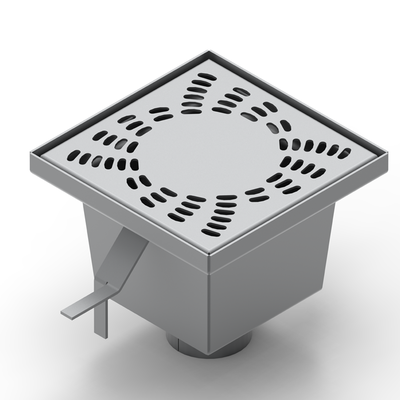

Stainless Steel Drain with Movable Cover - 150x150x100mm

Ralo linha leve tampa m%c3%b3vel 150x150x100

CONSTRUCTIVE CHARACTERISTICS:



  • Built in AISI 304 stainless steel;
  • Cover in #1.5mm sheet metal folded with 12 x 5mm oblong holes;
  • #1.5mm sheet metal body;
  • Sewer outlet at the bottom with 2” OD pipe, 1.5mm thick;
  • 2 chicken feet in #2mm sheet metal for fixing to concrete;
  • External dimensions of the body 150 x 150 x 100mm.
